Use 3D Scanning for Aerodynamic Designing

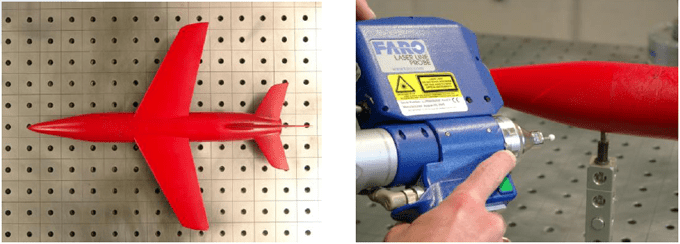

Picture Credit : rapidform.com

For improving and creating new designs for aerodynamic model wind tunnels were preferred mostly. The designers now use novel techniques for creating new designs and models for aircraft digitally. The technology that helps such designers is undoubtedly that of 3D scanning. This procedure has been in general termed as the Computational Fluid Dynamics or the CFD. The mechanical and the process engineering branch in the Technology University at Kaiserslautern are utilizing the technology. The designers, now, have planned something that speaks both accuracy and innovation as it combined the CFD, the field tests, and also the wind tunnels.

The designers hold the view that 3D scanning would offer a better and more accurate with the assistance of 3D scanning. They are also of the view that Rapidform XOR offers the best scanning results. CFD simulation is helping in the creation of newer designs and forms. Mesh data which is accumulated following the scanning are created on top by utilizing Rapidform XOR. This technology it follows is that of  Mesh Building Wizard and it can create mesh made up of a number of scans which are merged. The technology has proved a success in delivering high quality results besides being accurate and useful.

Accuracy Analyzer is present in the device such that it can measure the accuracy. This analyzer offers a feedback when the input is compared with the output model. When the CAD model satisfies the designer he can proceed with the third generation modeling. The model thus created can be guided by polygon model.

This device makes the process convenient and a lot may be accomplished without having to put effort. Rapidform XOR oprovides great convenience combined with accuracy and thus it becomes the most preferred of the devices for 3D scanning. The designers can use the information which is built on computer is used in wind tunnel test and field test. With the assistance of this they would ensure that those models they have created are the most suitable which again is practicable because of the many tools that they use.

The aerodynamic devices can now be built in a much more creative and accurate method and this is all because of Rapidform XOR that has made the technology of 3D scanning really convenient. The designers are considering the device as both intuitive and useful in developing CAD models. The engineers, now, no longer have to depend on the field tests because now they can look at the variables digitally.
